The curvature function allows the user to quickly find out what the smallest radii is on the part to aid cutter selection. Internal and external radii are filterable and the radii range is user definable. For quick identification this is done graphically using a colour overlay to the surfaces and the cursor tool tip provides an accurate size.

A draft function shows draft angles (tapers from the tool axis) using a similar style of graphical display as the curvature. This could aid the selection of the cutter and or type of tool path.

The stock analysis uses the triangulated surfaces and a stock model to provide the depth of the remaining material. The depth is shown in different colours according to the amount of material left.

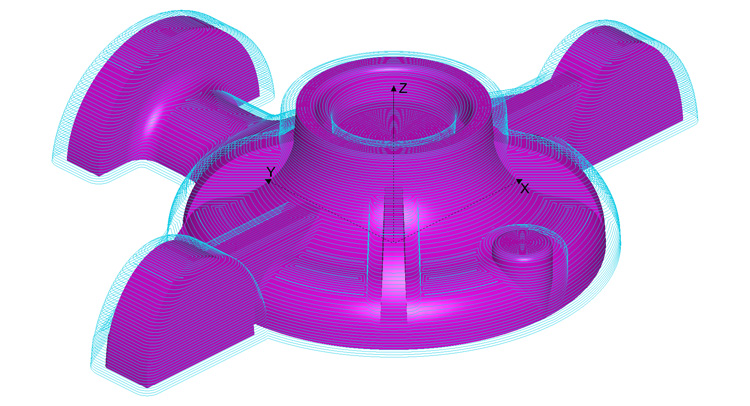

Combined Passes 1

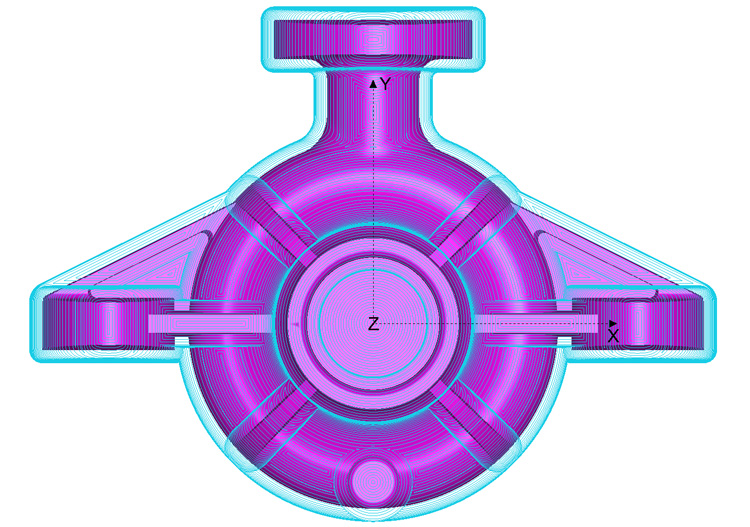

Combined Passes 2
