The machine tool simulation allows the user to simulate the machine movement. This is generally very important for 5-axis toolpaths, where it is often difficult to visualise the real position of the machine when animating the toolpath. By running the toolpath through the machine simulation, you can be sure there will be no collision between the machine head and the bed/table of the machine.

Like the toolpath animator the user can control the simulation speed, zoom in/out. Should there be a collision, it will be highlighted graphically and a dialogue is displayed to inform the user. The machine tool simulation is also able to simulate the stock being removed pass by pass.

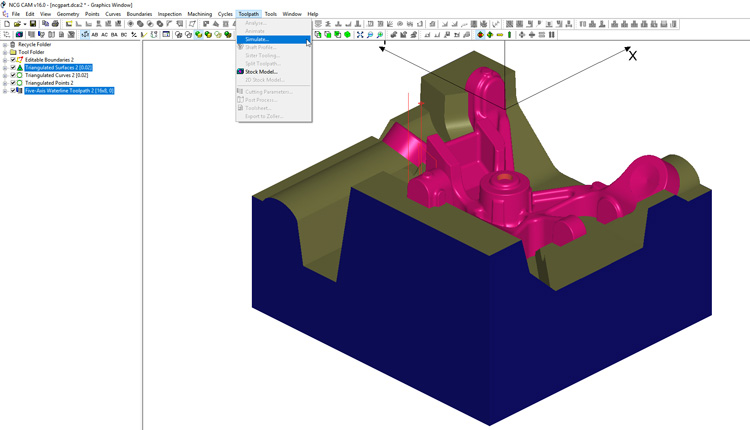

Machine tool simulation1

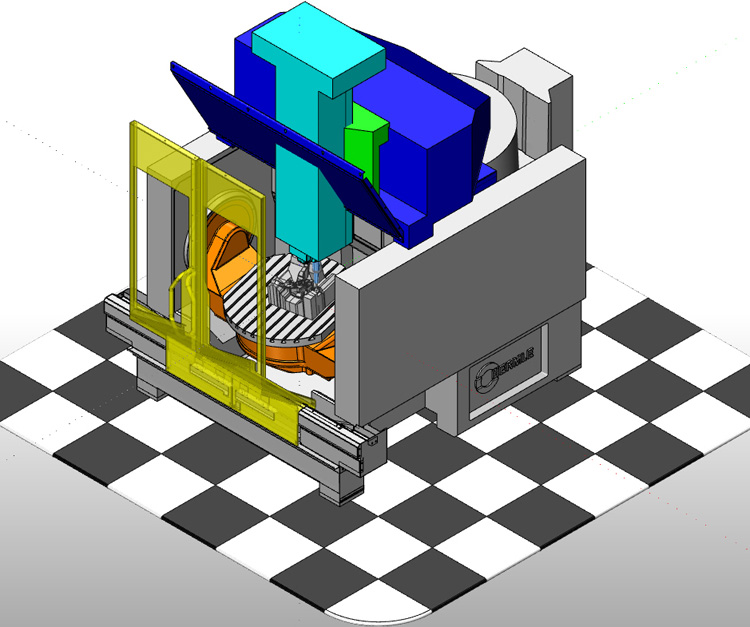

Machine tool simulation2

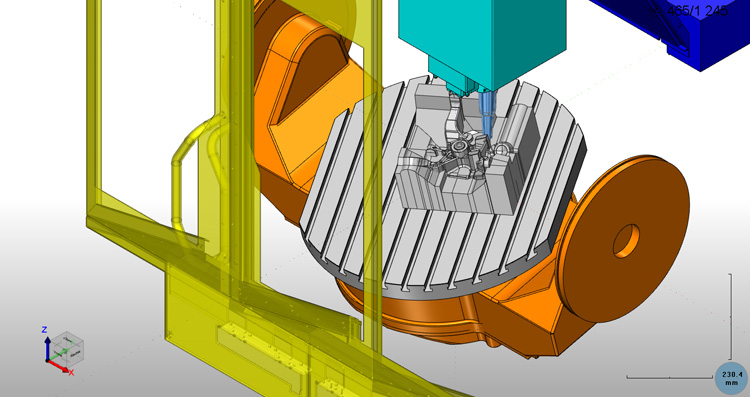

Machine tool simulation3
